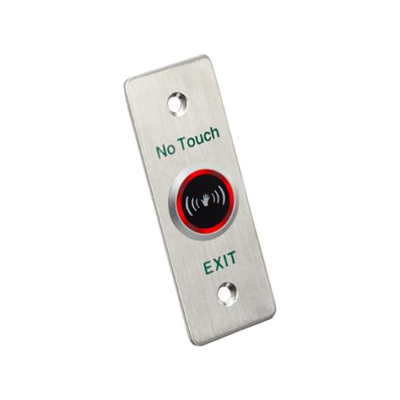

The Hikvision DS-K7P04 No-Touch Exit Button is a contactless door-release solution designed for access control systems in offices, commercial buildings, residential complexes and other controlled-access environments.
Using infrared sensor technology, the button allows users to trigger a door release without physically touching the switch. Simply move a hand within the detection range to activate the exit function.
The contactless design helps reduce physical contact with shared surfaces, making it particularly useful for busy entrances and exits.
The DS-K7P04 features NO/NC/COM relay output, allowing integration with compatible access control systems and electric locking equipment. An LED indicator provides clear visual status information during operation.
Key Features
- Contactless / no-touch exit button
- Infrared sensor technology
- Designed for access control door-release applications
-
Detection range of approximately 0.1 to 10cm
- NO/NC/COM relay output
- LED status indicator
- Durable stainless-steel panel
- Suitable for offices, businesses and controlled-access environments
- Helps reduce contact with frequently touched surfaces
- Compatible with a wide range of access control systems
- Simple wall-mounted installation
Specifications
Brand: Hikvision
Model / SKU: DS-K7P04
Product Type: No-Touch Exit Button
Application: Access Control / Door Release
Operation: Contactless Infrared Sensor
Detection Distance: 0.1–10cm
Output Contact: NO / NC / COM
Panel Material: Stainless Steel
LED Indicator: Yes
Power Supply: 12V DC
Working Current: Approx. 40mA
Installation: Wall Mount
Operating Temperature: -20°C to 50°C
Operating Humidity: 0%–95% RH
Product Dimensions: Approx. 86 × 86 × 25.7 mm
Colour: Silver / Metallic
