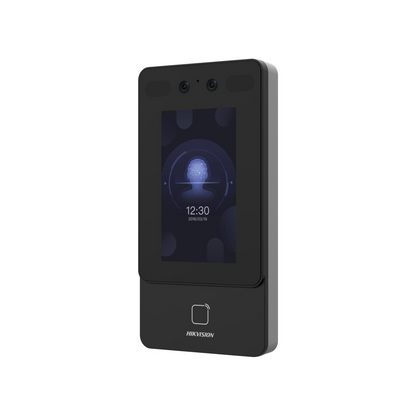

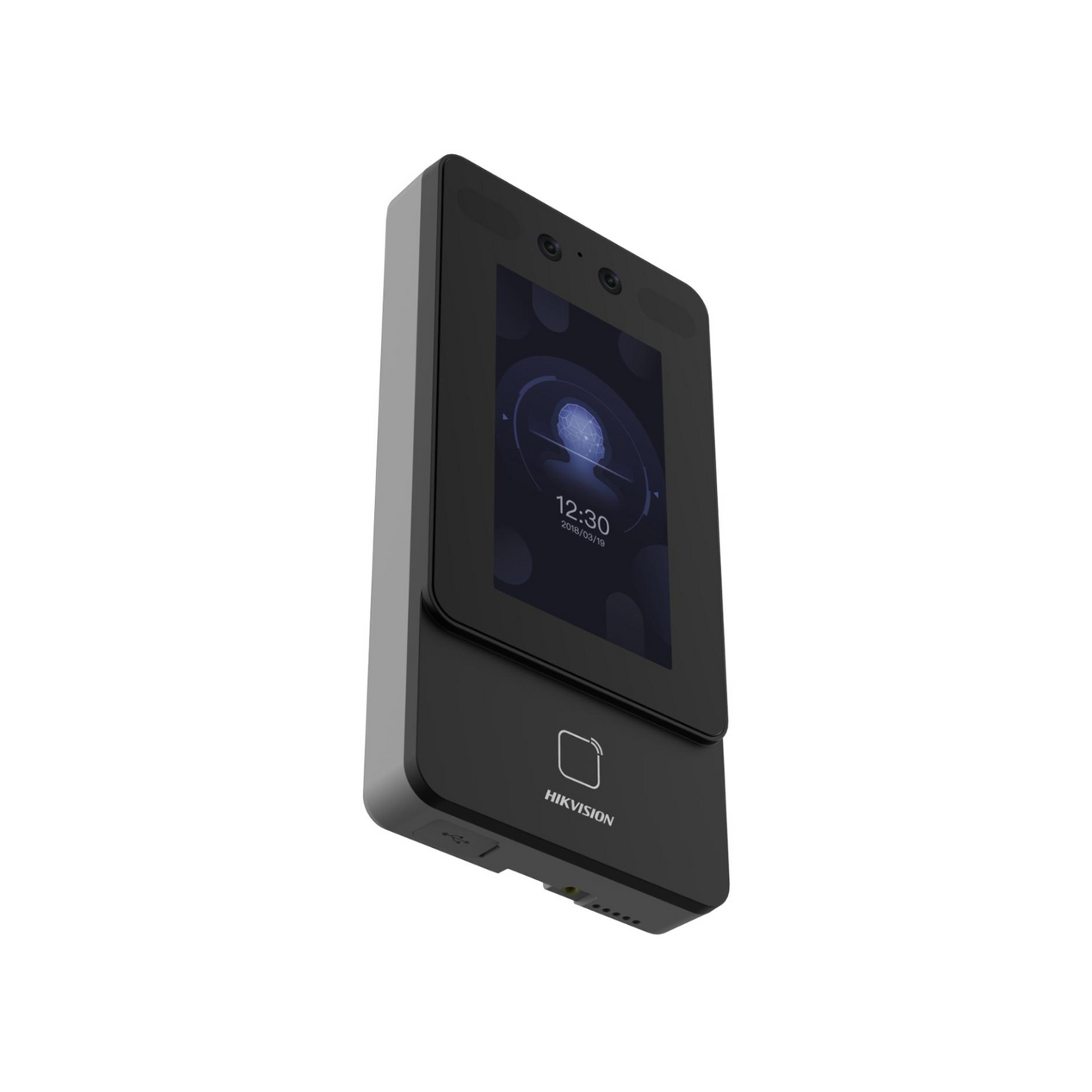

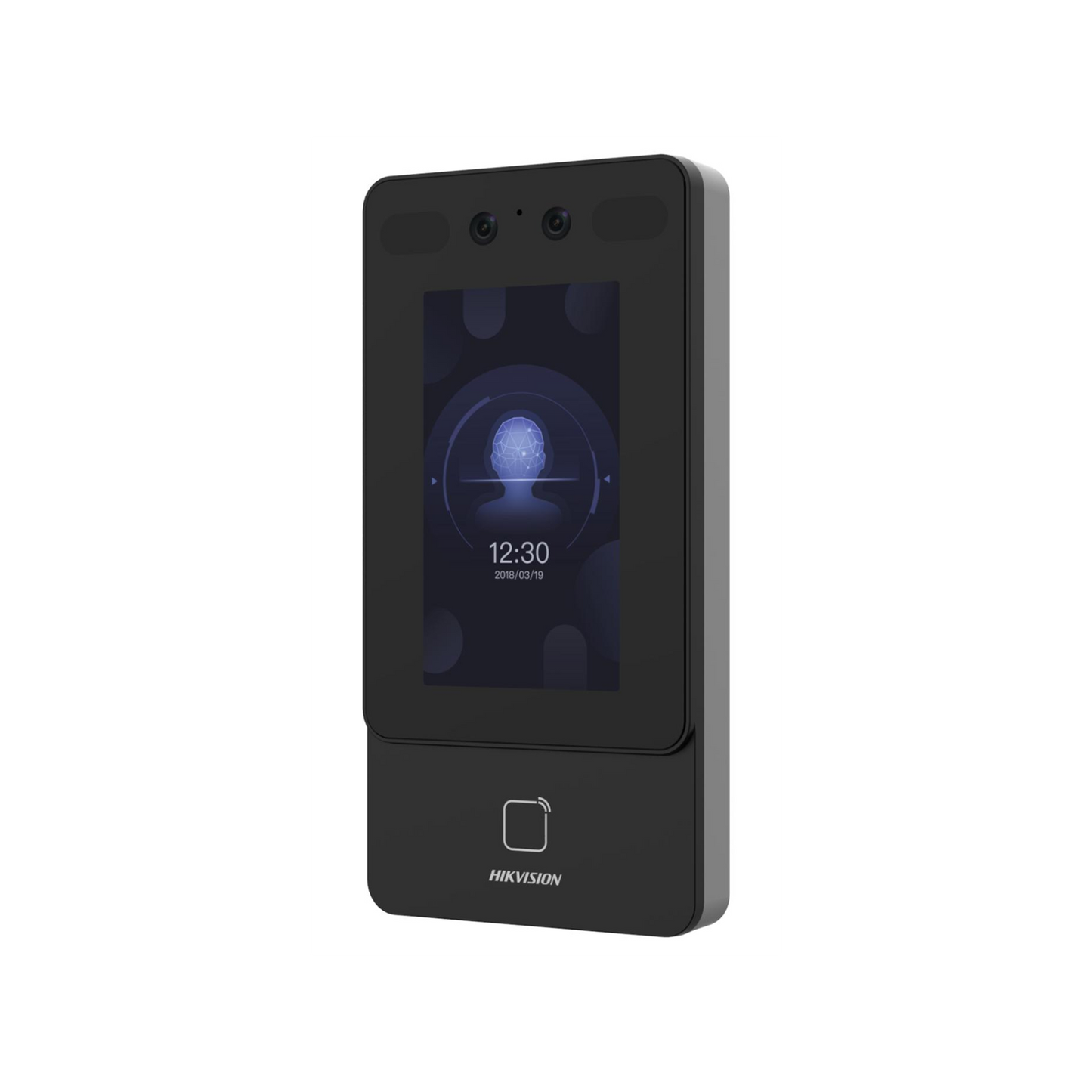

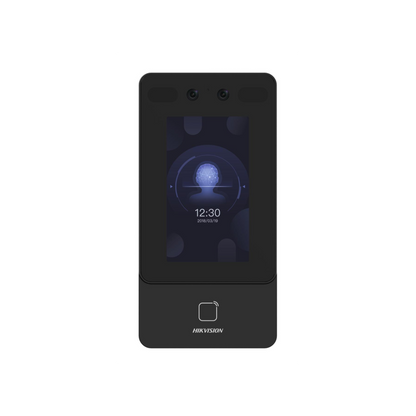

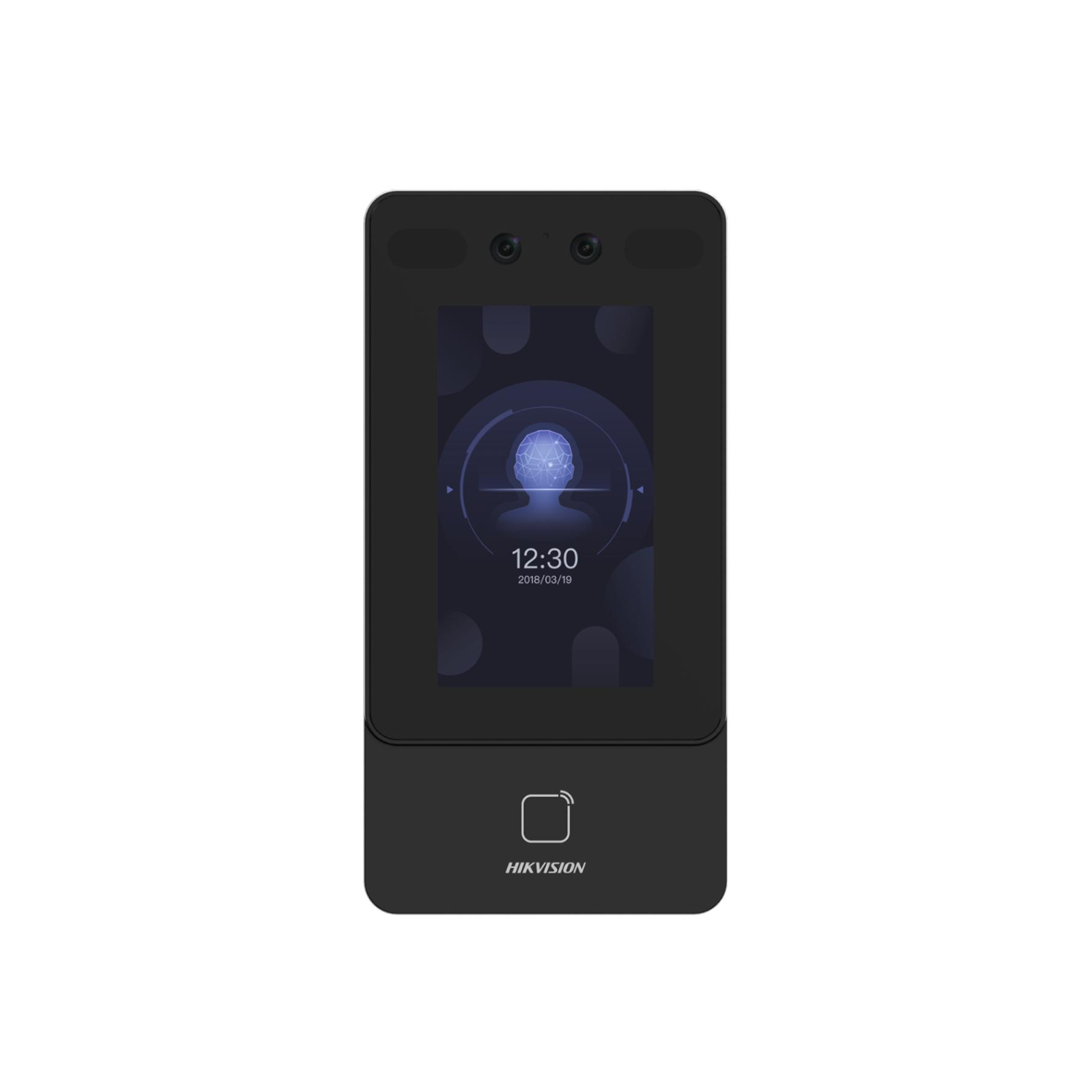

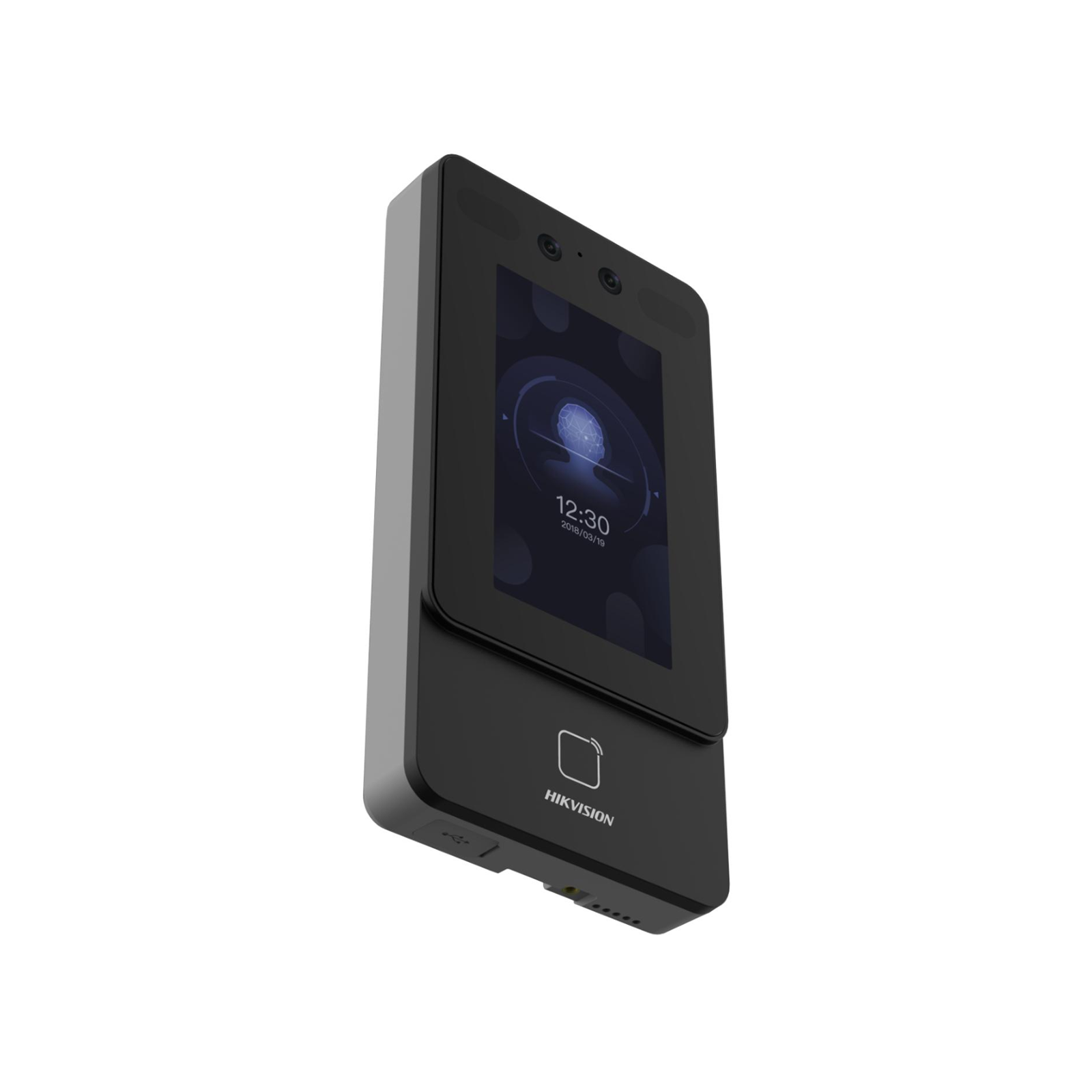

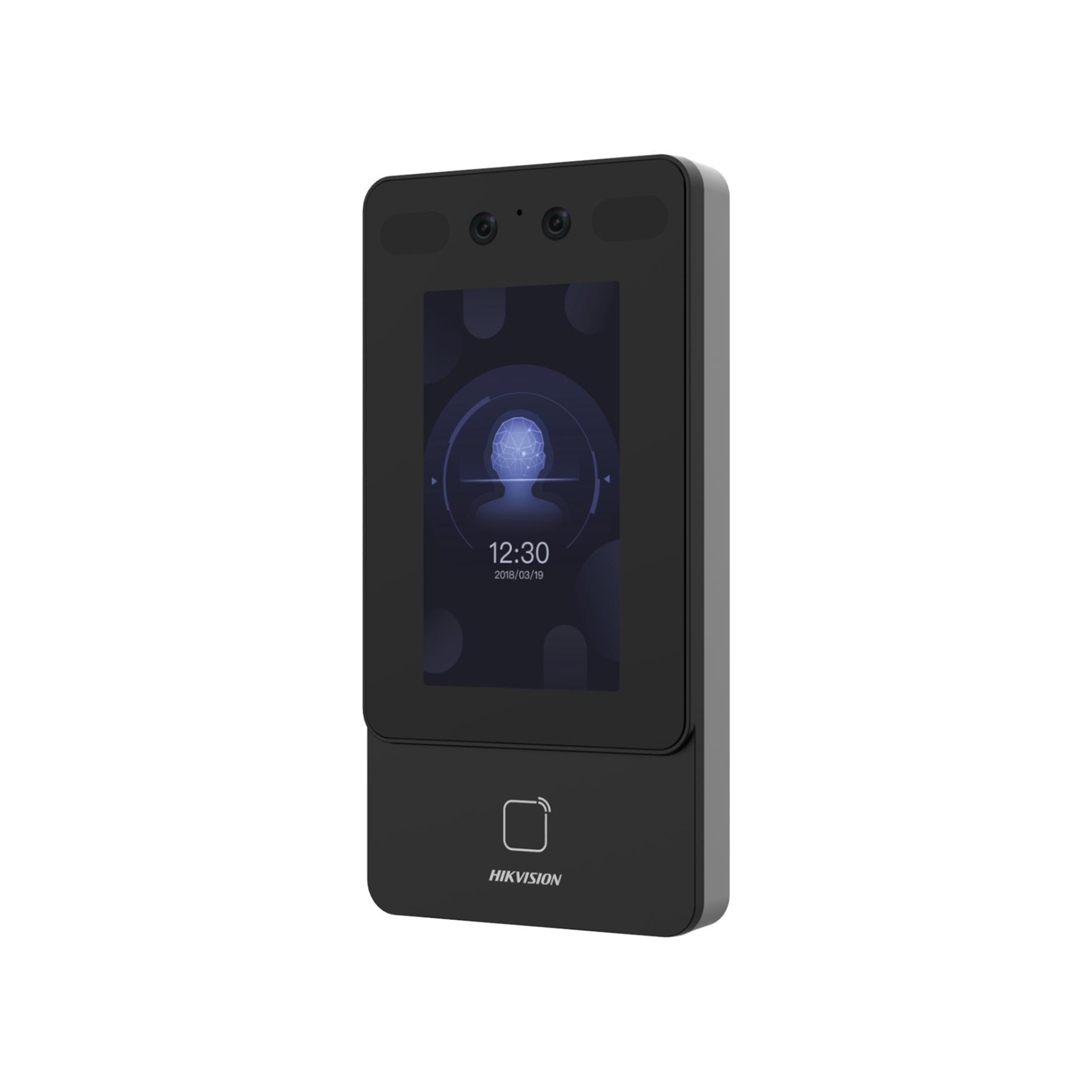

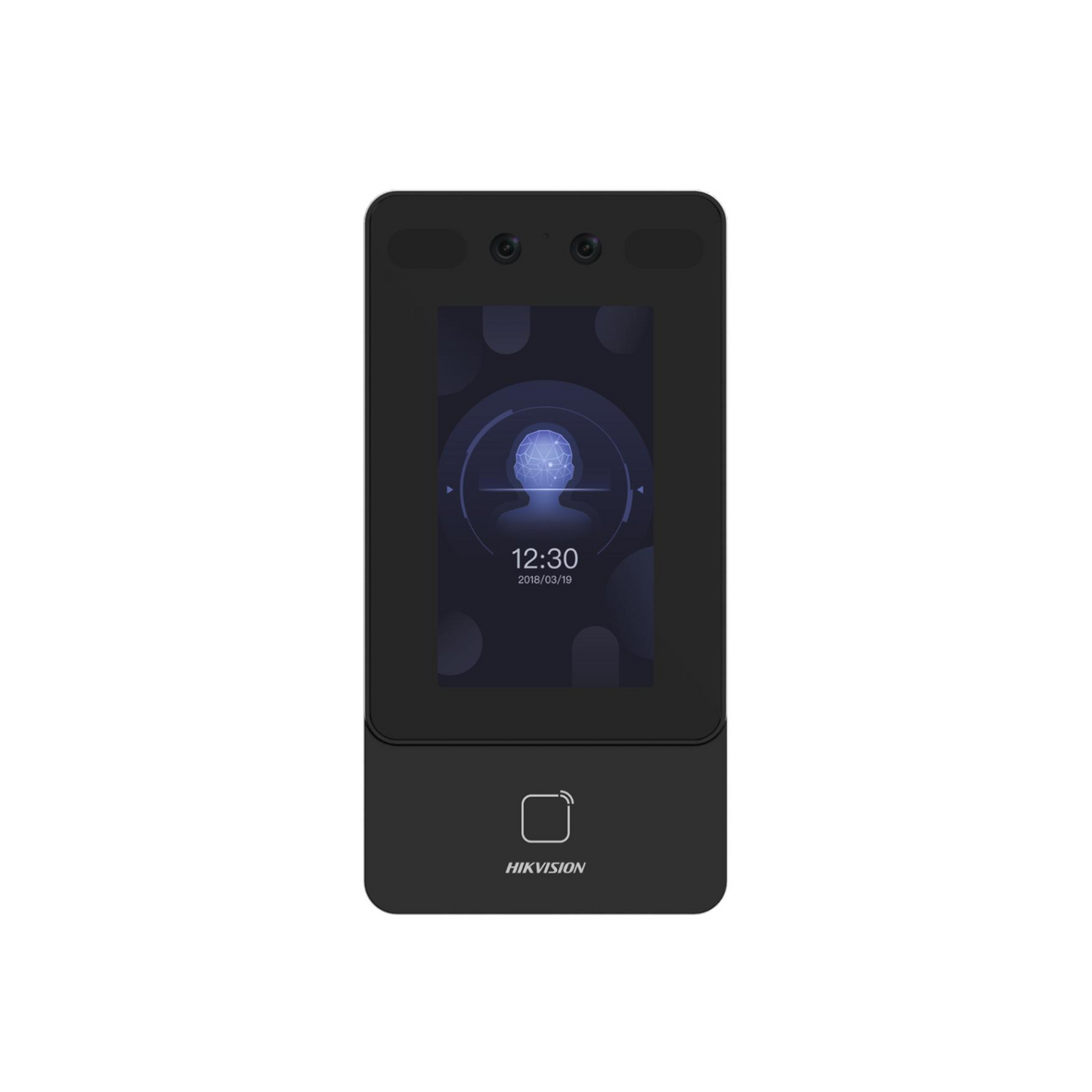

The Hikvision DS-K1T342MFWX-E1 Face Recognition Terminal is a professional biometric access control solution designed for offices, businesses, commercial buildings and other controlled-access environments.
Powered by Hikvision's face recognition technology, the terminal provides fast authentication with a recognition time of less than 0.2 seconds per user and a stated face recognition accuracy rate of over 99%.
The terminal supports multiple authentication methods, including face recognition, fingerprint and M1 card authentication, allowing organisations to configure access according to their requirements.
A 4.3-inch LCD capacitive touchscreen provides an intuitive user interface, while dual 2MP lenses support facial identification and anti-spoofing functionality.
With support for Wi-Fi, Ethernet and standard PoE, the terminal offers flexible network and installation options. It also provides interfaces for door locks, exit buttons, door contacts, RS-485 and Wiegand devices.
Key Features
- Advanced biometric face recognition
-
Face recognition in less than 0.2 seconds per user
-
Face recognition accuracy of over 99%
-
Recognition distance of 0.3m to 1.5m
- Supports face, fingerprint and card authentication
- Supports face recognition while wearing a mask
- Face anti-spoofing technology
- 4.3-inch LCD capacitive touchscreen
-
Dual 2MP camera lenses
- Built-in M1 card reader
- Built-in fingerprint reader
- Built-in microphone and loudspeaker
- Two-way audio support
- Wi-Fi connectivity
- 10/100Mbps Ethernet
- Standard IEEE 802.3at PoE support
- RS-485 and Wiegand interfaces
- Lock control output
- Exit button input
- Door contact input
- Tamper input
- USB interface
- IP65-rated protection
- Wall-mount installation
Capacity
User Capacity: 1,500
Face Capacity: 1,500
Fingerprint Capacity: 3,000
Card Capacity: 3,000
Event Capacity: 150,000
Display & Camera
Display Size: 4.3 inches
Display Type: LCD
Touchscreen: Capacitive
Display Resolution: 272 × 480
Camera Resolution: 2MP
Number of Lenses: 2
Lens Focal Length: 4mm
Wide Dynamic Range (WDR): Yes
IR Supplement Light: Yes
Connectivity & Interfaces
Wi-Fi: Yes
Ethernet: 10/100Mbps
Network Interface: 1 × RJ-45
PoE: IEEE 802.3at
RS-485: 1
Wiegand: 1
Lock Output: 1
Exit Button Input: 1
Door Contact Input: 1
Tamper: 1
USB: 1
Protocols: ISAPI, ISUP 5.0
General Specifications
Brand: Hikvision
Model / SKU: DS-K1T342MFWX-E1
Product Type: Face Recognition Access Control Terminal
Operating System: Linux
Installation: Wall Mount
Protection Rating: IP65
Power: 12V DC / 1A or PoE
Operating Temperature: -30°C to 60°C
Operating Humidity: 0% to 90%, non-condensing
Product Dimensions (W × H × D): 91.3 × 181.3 × 24.5 mm
Net Weight: Approx. 360g
Gross Weight: Approx. 930g
