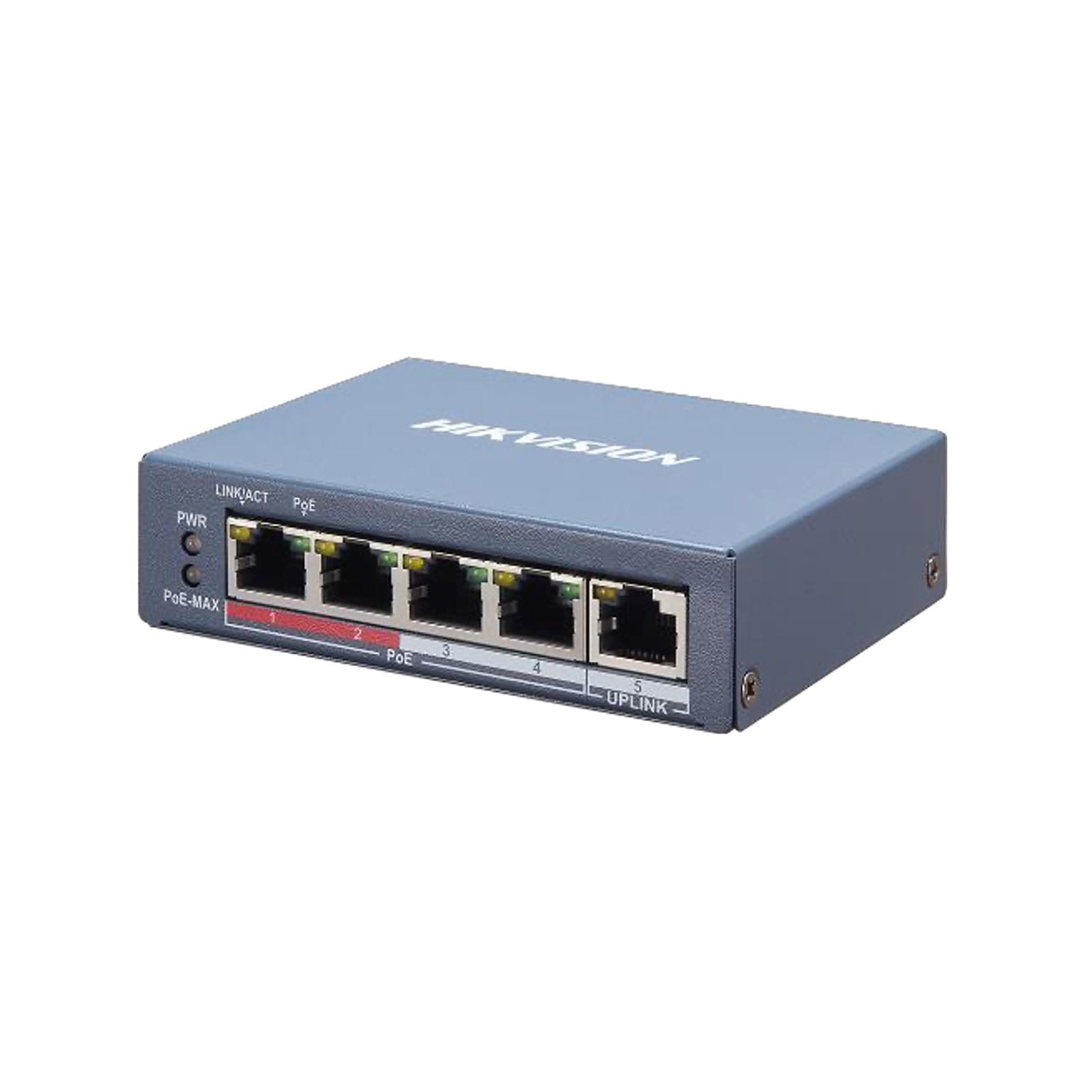

The Hikvision DS-3E1105P-EI Smart Managed PoE Switch is a compact networking solution designed for IP surveillance systems, small business networks and other PoE-enabled installations.
It features 4 × 10/100 Mbps PoE ports for connecting and powering compatible devices such as IP cameras, together with 1 × 10/100 Mbps RJ45 uplink port for network connectivity.
With a total 60W PoE power budget and support for IEEE 802.3af/at standards, each PoE port can supply up to 30W to compatible devices.
For surveillance installations where devices need to be positioned further away, the switch supports long-range PoE transmission up to 300 metres on ports 1–4, subject to the connected device and cable conditions.
Smart management functionality includes VLAN support, PoE watchdog, network topology monitoring, loop prevention and cable detection. The PoE watchdog can automatically detect and restart connected cameras that stop responding, helping improve network reliability.
Key Features
- 4 × 10/100 Mbps PoE Ethernet ports
- 1 × 10/100 Mbps RJ45 uplink port
- 60W total PoE power budget
-
Up to 30W PoE output per port
- Supports IEEE 802.3af and IEEE 802.3at PoE
-
Up to 300m long-range PoE transmission
- 6kV surge protection for PoE ports
- Smart-managed network functionality
- PoE watchdog automatically detects and restarts unresponsive cameras
- Supports 802.1Q VLAN
- Supports STP/RSTP loop prevention
- Cable detection for locating network faults
- Port isolation support
- VIP priority functionality on ports 1 and 2
- Network topology and health monitoring
- Remote management support
- Compact metal housing
- Suitable for desktop or wall-mounted installation
Network Specifications
PoE Ports: 4 × 10/100 Mbps
Uplink Port: 1 × 10/100 Mbps RJ45
Total Ethernet Ports: 5
Switching Capacity: 1 Gbps
Packet Forwarding Rate: 0.74 Mpps
MAC Address Table: 2K
Internal Cache: 768 Kbits
VLAN: IEEE 802.1Q
VLAN IDs: 1–4094
Maximum VLANs: 32
Loop Prevention: STP / RSTP
Long-Range Transmission: Up to 300m on ports 1–4
PoE Specifications
PoE Standard: IEEE 802.3af / IEEE 802.3at
PoE Ports: Ports 1–4
Maximum PoE Output Per Port: 30W
Total PoE Power Budget: 60W
PoE Watchdog: Yes
PoE Surge Protection: 6kV
General Specifications
Brand: Hikvision
Model: DS-3E1105P-EI
Product Type: Smart Managed PoE Network Switch
Housing Material: Metal
Power Supply: 54V DC, 1.2A
Maximum Power Consumption: 65W
Idle Power Consumption: 0.9W
Installation: Desktop or Wall Mount
Operating Temperature: 0°C to 40°C
Operating Humidity: 5%–95%, non-condensing
Product Dimensions (W × H × D): 121.1 × 27.6 × 83.1 mm
Net Weight: 260g
Gross Weight: 750g
